Features:

The speaker's multi-driver array brings out every detail in the mid and high frequencies. Get the most out of your music

Are your car's factory speakers not sounding fresh?
The QP A-Series speakers we build for you are high-performance replacements for older speakers, engineered from the ground up to bring your music back to life. You'll be able to enjoy the clear vocals, thick guitar riffs, powerful drums, and unique bass lines that have always been a part of your favorite songs but still hide behind low-quality speakers.

Built to make your music rock.
The speaker is equipped with a multi-layered mica array woofer that remains rigid when the volume is turned up, keeping distortion to a minimum for crystal-clear bass. Each woofer is paired with a midrange, tweeter and two super tweeters to add warmth and clarity to your driving soundtrack.

These speakers will sound great with your factory stereo, but will really shine when driven by an aftermarket receiver or external amplifier. Don't drive another day listening to tired tunes, when you can enjoy Pioneer sound quality with these speakers in your vehicle.

Specification:

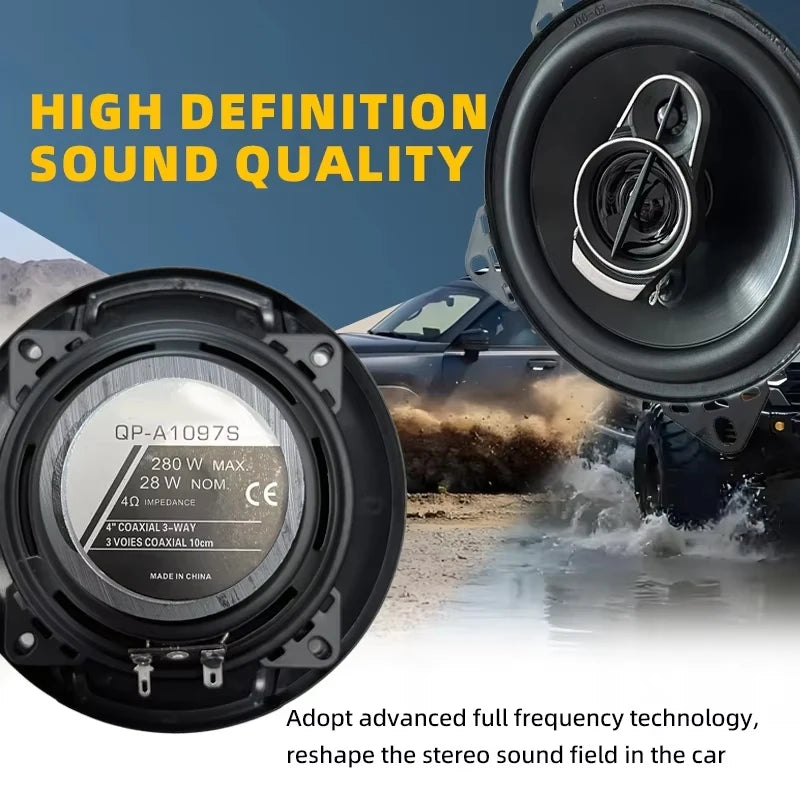

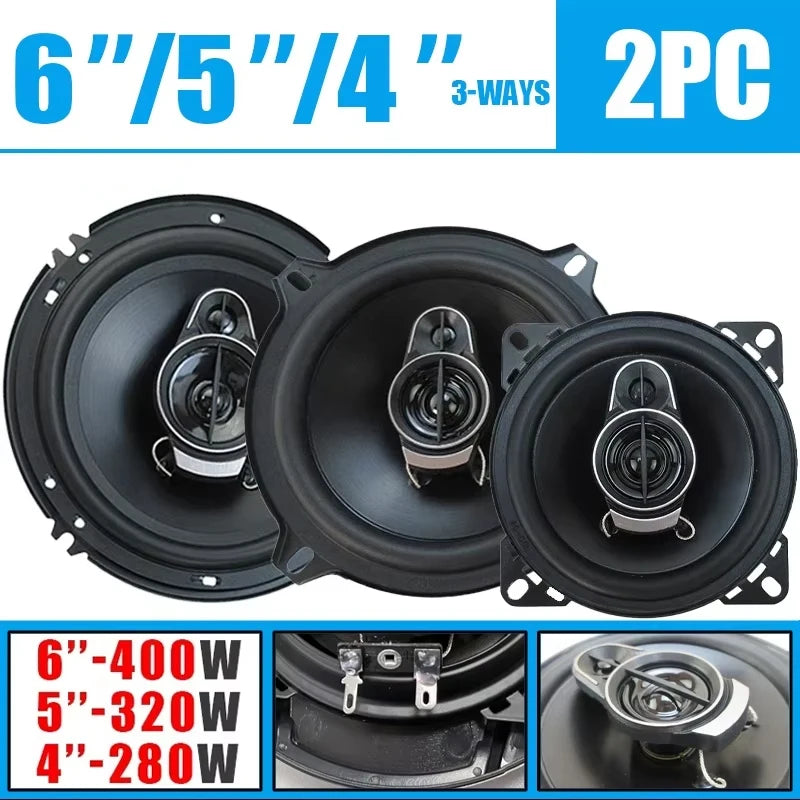

Model:QP-A1097S/QP-A1397S/QP-A1697S
Speaker type: Coaxial speaker (Full frequency range)
Number of sound channels: 3-Way
Material: Metal+Magnet+Plastic
Color: Black
Voltage: 12V~24V
Applicable models: Universal Car, Truck, Bus, etc
Maximum power:
280W(QP-A1097S)
320W(QP-A1397S)
400W(QP-A1697S)
Impedance: 4Ω
Audio Sensitivity: 92dB
Frequency Range (Hz): 30Hz-36kHz
Material: Metal + Rubber + Magnetic
Special Features: Damp-proof and High Sensitivity
Model Number: Car Audio Music Stereo

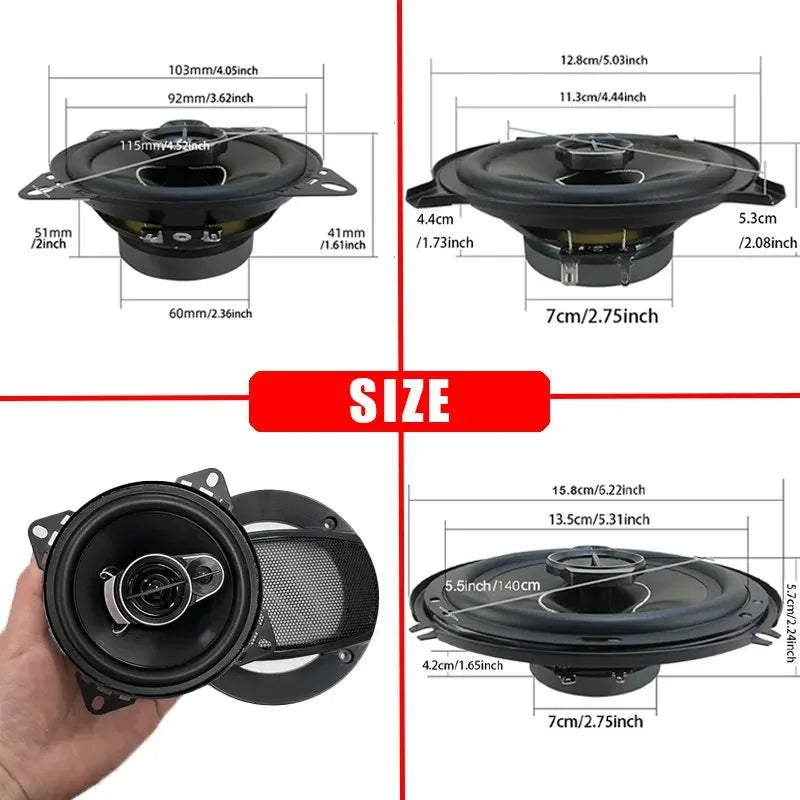

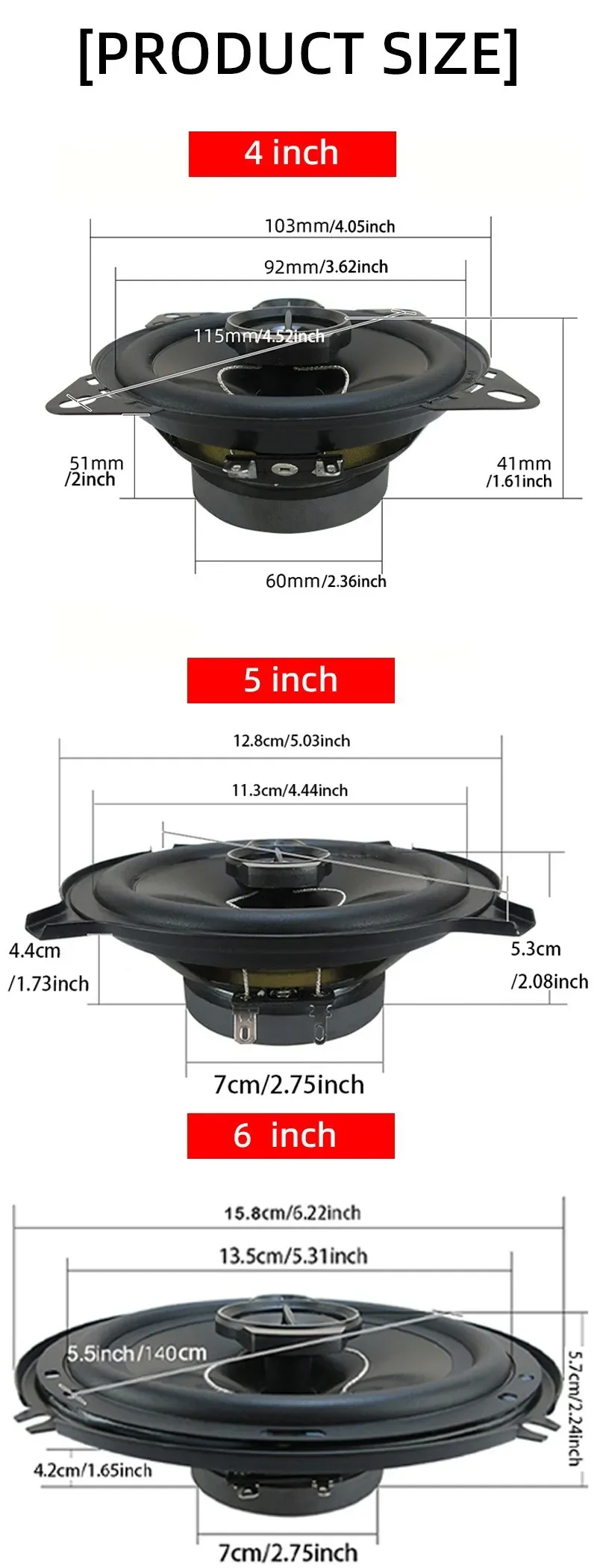

Size(Optional):
4 inch: 10.2*10.2*4.5cm/4*4*1.96inch
5 inch: 13*13*5.1cm/5.1*5.1*2inch
6 inch: 16*16*5.8cm/6.3*6.3*2.3inch

Package (Models to purchase)：
2X Speakers
2X Speaker covers
2X Speaker cables
1X Screw kit

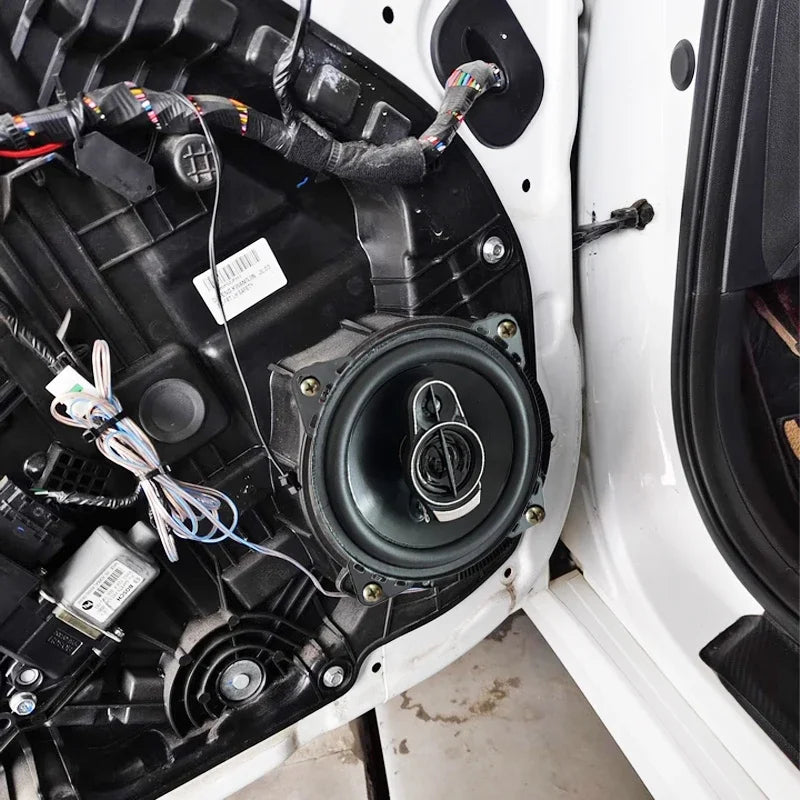

Installation Instructions

To protect the vehicle, cover it with a dust cloth.

Pry the door, unscrew the screws inside and around
the door panel, and force outward from the bottom of the door panel to remove the door.

Remove the original car horn first fix the gasket on the original car horn.

1. To protect the vehicle, add a dust cloth to the vehicle
2. Remove the door panel (trim panel)
3. Remove the original car speaker
4. Fix the speaker bracket
5. Fix the speaker crossover
6. Connect the speaker terminals
7. Fix the speaker to the bracket
8. Connect the cross connection to the speaker wiring
9. Remove the original car speaker and replace the speaker
10. The reset and replacement of the door panel is completed

THE DETAILS SHOW THE QUALITY

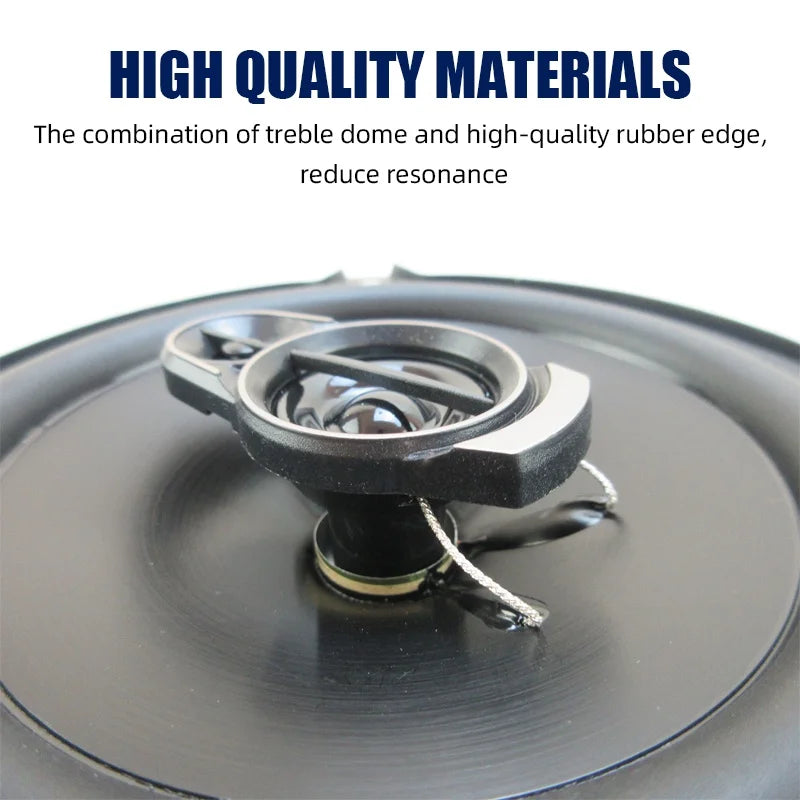

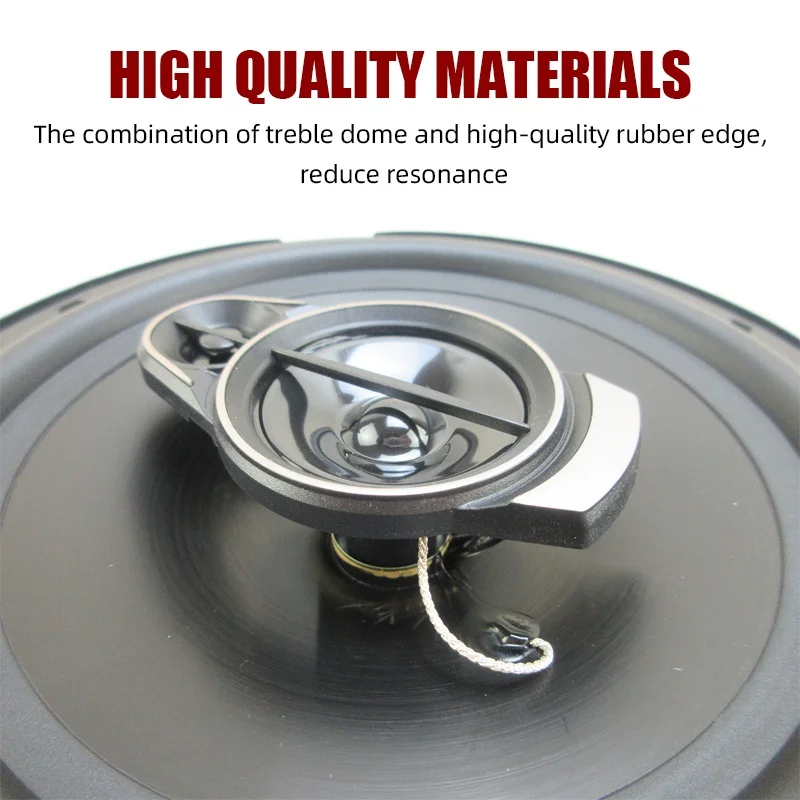

TREBLE TOP
Let your voice flow smoothly
Soft and sweet
Raised tweeter
The sound is briaht and metallic

HIGH QUALITY RUBBER EDGE
High quality rubber edge
High temperature resistance
Can be used for a long time without deformation

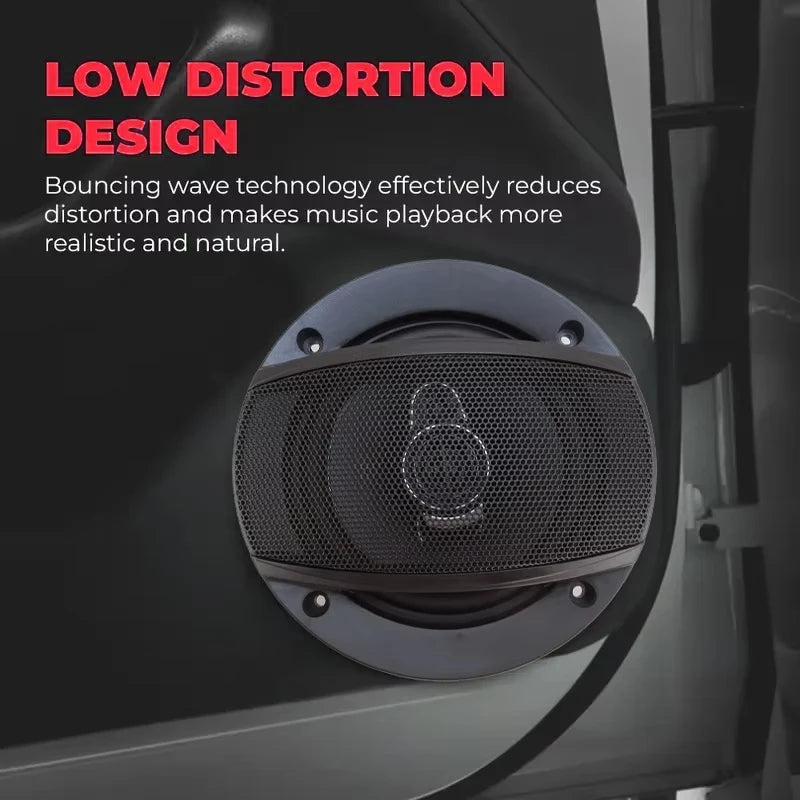

ELASTIC WAVE
Power of bounce
Reduce the loss of distortion degree
Restore the real voice

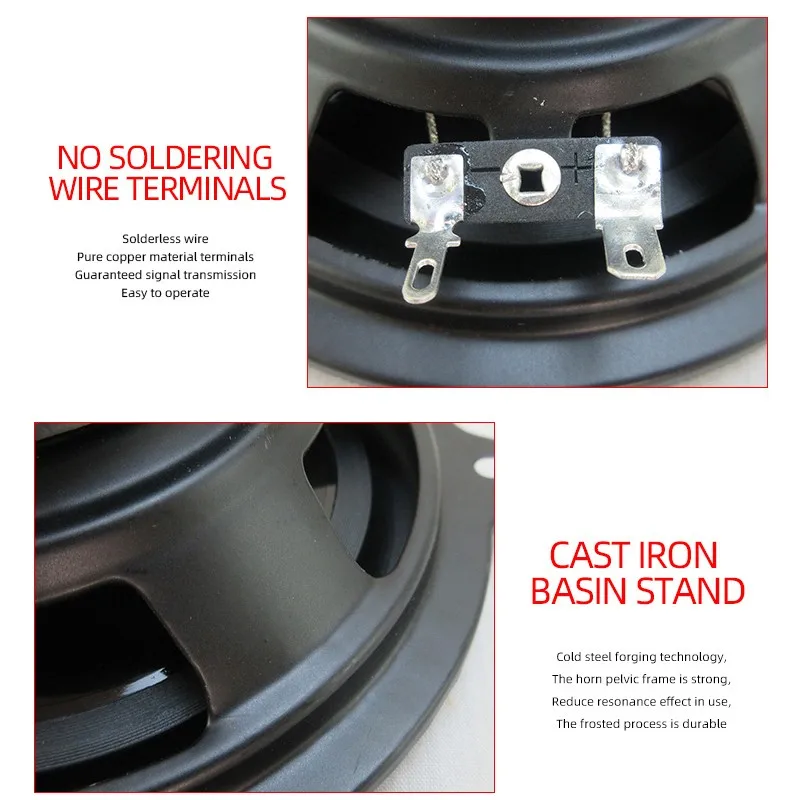

NO SOLDERING WIRE TERMINALS
Solderless wire
Pure copper material terminals
Guaranteed signal transmission
Easy to operate

CAST IRON BASIN STAND
Cold steel forging technology
The horn pelvic frame is strong
Reduce resonance effect in use
The frosted process is durable

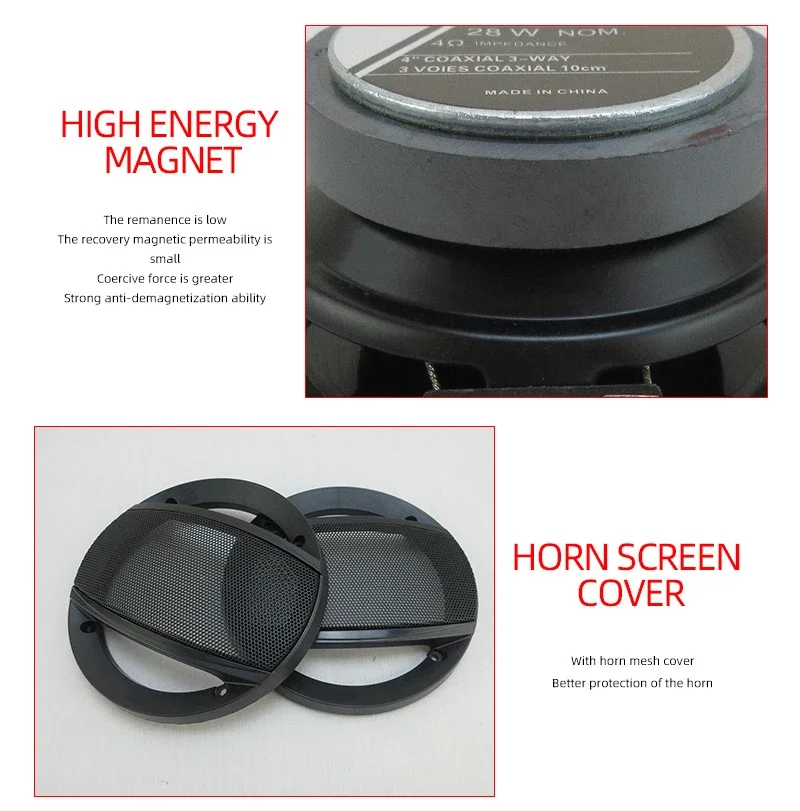

HIGH ENERGY MAGNET
The remanence is low
The recovery magnetic permeability is small
Coercive force is greater

HORN SCREEN COVER
With horn mesh cover
Better protection of the horn

Attention:

1. Before buying, please confirm installation size, ensure the length and height of machine panel is suitable for your car.

2.Before installation, please carefully check the car horn lines, if grounding, please reconnect the lines before linking our machine, otherwise it may burn the machine.

3.The actual power of the speaker itself is not very large, there will be murmurs and buzzing when the speaker is very loud.

4.There will be murmurs and buzzing when the reconfiguration process is not connected correctly.

5. If there is no power amplifier installed, the sound of the main unit is not good and the power is not good, there will be murmurs and buzzing when the speaker is loud.

6. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

7. Please allow 1-2cm measuring deviation due to manual measurement.
